I. Procurement Content

Semi-anechoic chamber

II. Standards Followed

1. GB/T 6882 "Acoustics - Determination of sound power levels of noise sources - Precision methods for anechoic and hemi-anechoic rooms"

2. ISO 3745 "Acoustics - Determination of sound power levels of noise sources - Precision methods for anechoic and hemi-anechoic rooms"

3. JJF 1147 "Calibration Specification for Acoustic Characteristics of Anechoic and Hemi-anechoic Rooms"

4. GB/T 34877.3 - 2017 "Industrial fans - Determination of fan sound power under standard laboratory conditions - Part 3: Enveloping surface method"

5. GB/T 1236 - 2017 "Industrial fans - Performance testing using standardized air ducts"

6. GB 50034 - 2004 "Standard for lighting design of buildings"

III. Project Content and Main Indicators

1. The effective net internal dimensions of the semi-anechoic chamber installation project: 15000mm × 15100mm × 11300mm, with an accuracy of +/- 100mm;

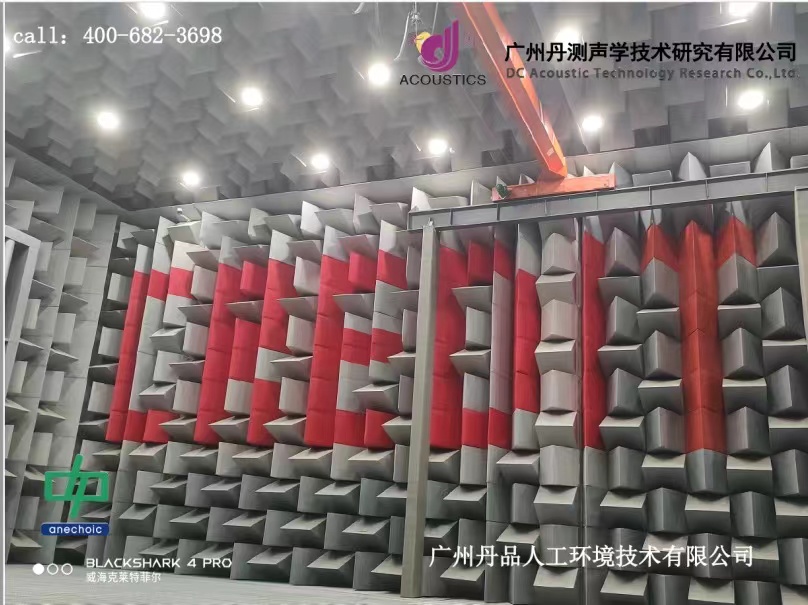

2. The size of the sound-absorbing and noise-reducing wedges used in the semi-anechoic chamber: 600 * 600 * 1000mm; when the external environment is working normally and there is no abnormal interference around (such as ground pounding, piling, impact), the background noise Lgn(A) ≤ 30dB(A), and the cut-off frequency: Fc ≤ 63Hz. IV. Key and Difficult Points of the Project

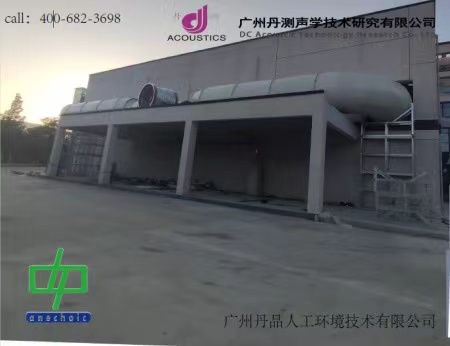

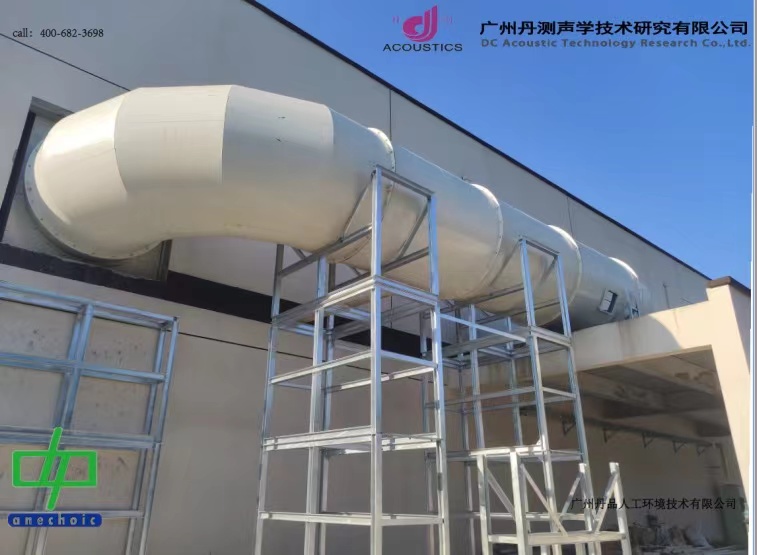

1. Wind Tunnel Pipeline

In order to reduce the impact of the noise generated when air enters the internal circulation on the semi-soundproof chamber and ensure that the background noise in the semi-soundproof chamber remains unchanged, the project has also carried out a unique design on the ventilation pipeline. The outer plate of the air duct adopts hot-dip galvanized copper plate, and a professional sound-absorbing and noise-reducing perforated flat plate is installed inside to reduce the noise generated when air flows. Sound-absorbing and noise-reducing materials are installed inside the pipeline to effectively ensure the treatment of sound absorption and noise reduction in the pipeline. At the same time, the pipeline is also equipped with sound-absorbing protective films to effectively prevent the leakage of dust generated by the sound-absorbing and noise-reducing materials and avoid the adverse impact of dust on the health of indoor workers. Another highlight of the pipeline design is to change the traditional pipeline interface method, adopt the method of connecting the auxiliary fan and the air duct with a round-to-square reducer and adding a flexible connection to reduce the vibration transmission of the auxiliary fan.

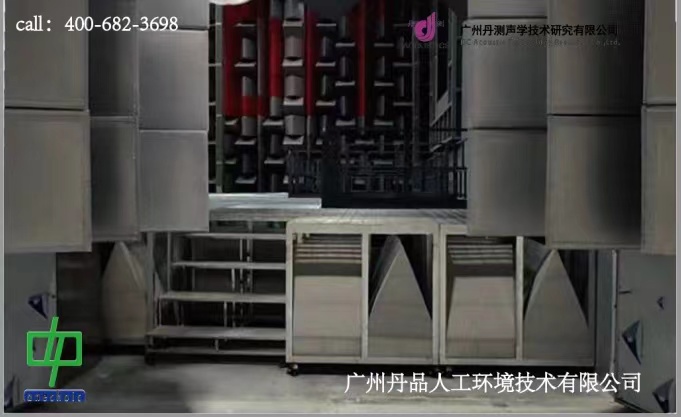

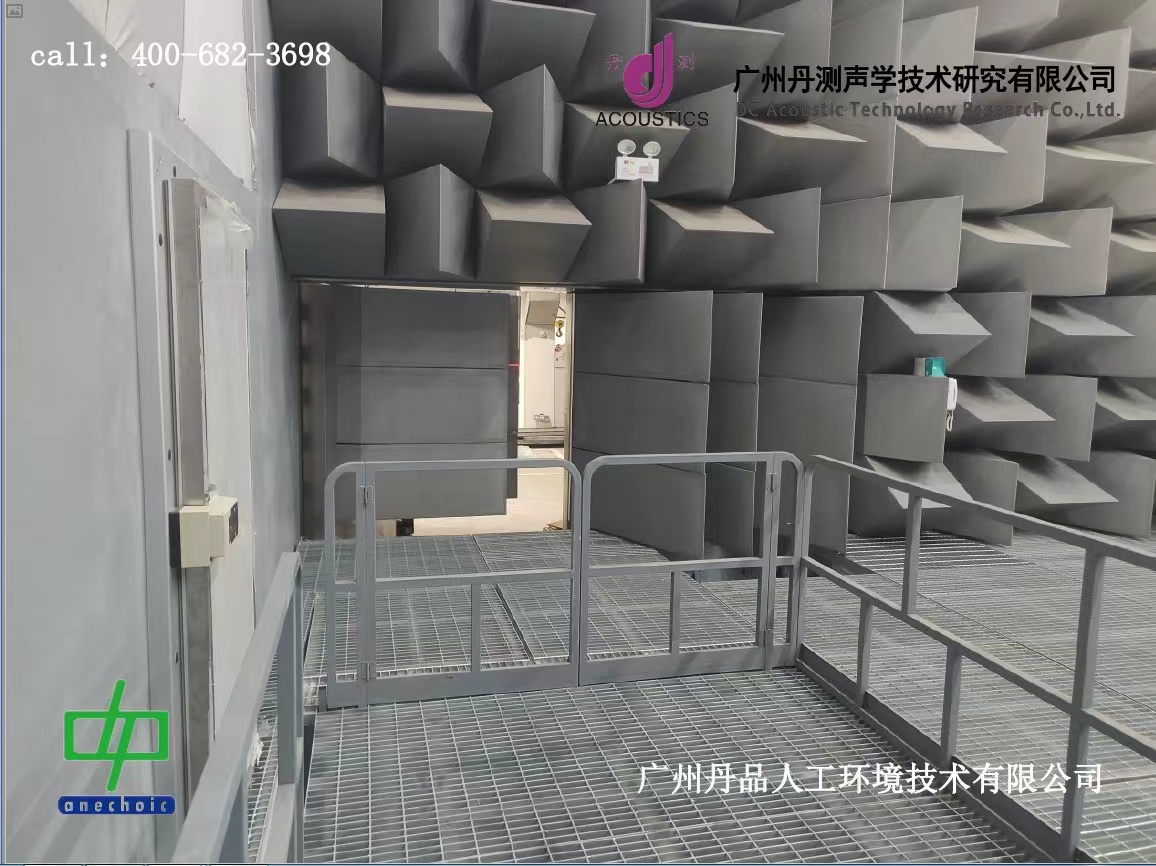

2. Movable Wedge Module Structure

In order to facilitate the replacement of test fans, a movable wedge area is installed in the semi-soundproof chamber. A group of movable wedge modules with moving wheels are installed under the movable wedge area. When replacing the test fan, open the acoustic gate, and the movable wedges with moving wheels move from the inside to the outside through the door. After the test fan is replaced, move the movable wedge modules back to their original positions, close the acoustic gate, and the semi-anechoic chamber can resume normal use.

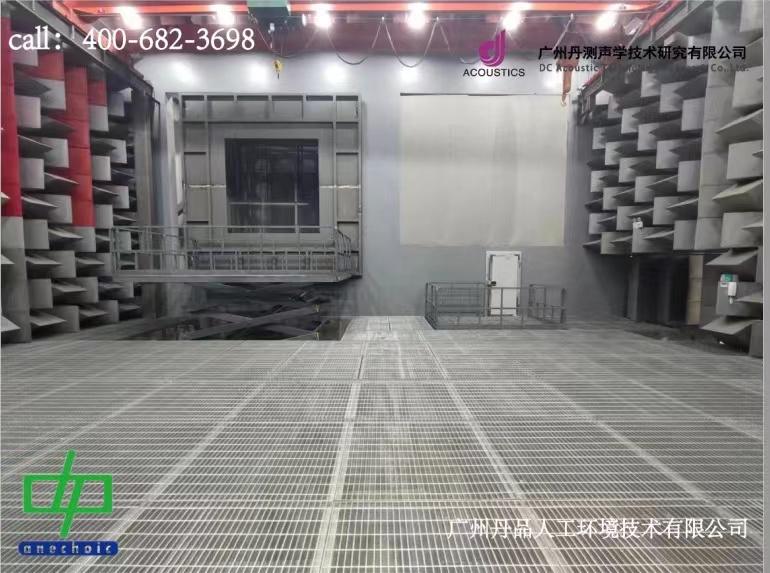

3. Lifting Platform

Two manned lifting platforms are installed inside the semi-soundproof chamber. One of them adopts a hydraulic scissor self-propelled vehicle lifting platform, and the other adopts a fixed hydraulic scissor lifting platform. Both lifts have undergone sound-absorbing and noise-reducing treatment to avoid the impact of the noise generated during the operation of the machines on the indoor background noise. Mobile wedge modules are used in the lifting platform area. When the lifting platform is moved out, the ground part of the lifting platform area can be filled to form a unified flat ground network structure indoors.

4. Noise and Vibration Testing Instrument System

The noise and vibration testing instrument system installed in the semi-anechoic chamber refers to GB/T 34877.3 - 2017 "Industrial fans - Determination of fan sound power levels under standard laboratory conditions", GB/T 1236 - 2017 "Industrial fans - Performance testing using standardized air ducts" and GB/T 3767 - 2016 "Acoustics - Determination of sound power levels of noise sources using sound pressure method - Engineering method for an approximately free field above a reflecting plane". This system can be used for fan sound power testing, noise analysis testing, including time-domain signal analysis, CPB analysis, FFT analysis and other weighting methods, with a total of 12 channels. The microphones used in the semi-anechoic chamber can meet the international and domestic testing standards for fans, as well as preamplifiers and sound level calibrators.

IV. Measurement and Acceptance

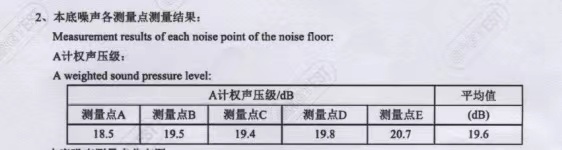

The actually measured background noise is: Lgn(A) ≤ 19.6dB (A).
